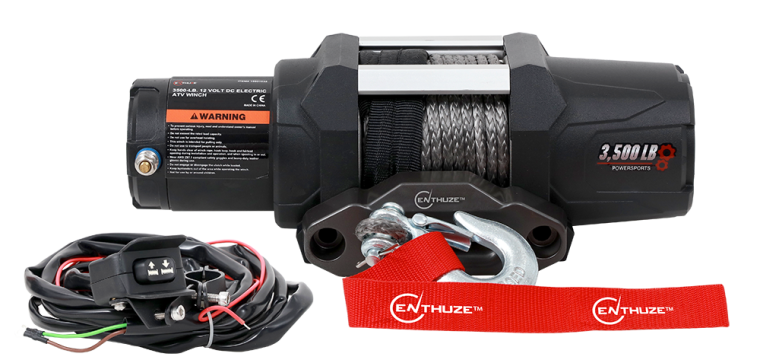

Enthuze 3500lb ATV/UTV Winch, Synthetic Rope

Buy Online | Ship to Your Door
$259.99
In Stock
UNIVERSAL OR MISSING FITMENT

This product may be universal or missing important fitment information for your vehicle. For vehicle specific items requiring fitment, please consult with an Enthuze representative before ordering as some items are non refundable.

Description

The Enthuze 3,500lb 12V DC Electric ATV/UTV Winch features a 1.3 HP permanent magnet motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out, while the 10’ ergonomic handheld remote control allows for safe operation at a distance. The winch contains an Aluminum Hawse Fairlead and an aircraft-grade Synthetic rope.
  • Three-stage planetary gear system provides fast line speed
  • Automatic load-holding brake keeps drum cool
  • 2" drum for superior cable-surface contact
  • Equipped with premium stainless-steel hardware
  • Includes handlebar-mounted rocker switch
  • Rated Single Line Pull: 3500Ib (1587kg)
  • Application: ATV / UTV
  • Motor: 12V DC 1.3 HP Permanent Magnet
  • Power in & Power Out: Yes
  • Duty Cycle Rating: 5% (45 seconds at Max Rated Load
  • 14 minutes, 15 seconds rest)
  • Wired Remote Controller: Wired, 10ft (3.1m) long
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 167:1
  • Free Spool: Cam Activated
  • Brake: Auto. Load Holding Mechanical
  • Drum (Dia. X L): 2" X 5" (50mmx84mm)
  • Hook: 1/4" Clevis, with Spring-Loaded Safety Latch
  • Fairlead: Aluminum Hawse Fairlead
  • Rope Size/Type: 0.216 " x 50’ (5.5mmx15.2m)
  • Synthetic Rope
  • Battery: 12V DC Minimum 20 Ah
  • Battery Cables: 8 Gauge, 5.9' Long
  • Solenoid Cables: 8 Gauge, 4.2' Long
  • Mounting Pattern: 3’’x 4.9’’ (76mmx124mm)
  • Mounting Hardware: Adaptor Plate: 4xM8x25mm, Fairlead: 2x M8x25mm, Relay：2x M5x20 mm
  • Sound Rating: 80db
  • Overall Dimensions (L X D X H): 13.3 " X 4.7" X 4.6"(337mmx120mmx118mm)
  • Weight: 20.5 Ib. (9.3kg)
  • IP Rating: IP 68 - Winch and Controls
  • To prevent serious injury, read and understand the owner's manual before operating
  • Do not exceed the rated load capacity
  • This winch is intended for pulling only
  • Do not use to transport people or animals
  • Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.
  • Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use
  • Do not engage or disengage the clutch while loaded
  • Keep bystanders out of the area while operating the winch
  • Not for use by or around children
