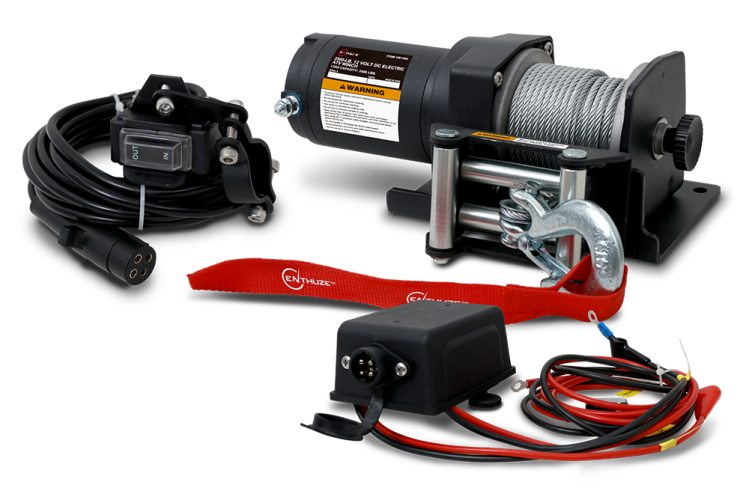

Enthuze 2500lb ATV Winch, Steel Rope
This product may be universal or missing important fitment information for your vehicle. For vehicle specific items requiring fitment, please consult with an Enthuze representative before ordering as some items are non refundable.
Description
The Enthuze 2500lb 12 Volt DC Electric ATV Winch has a permanent magnet motor which draws less current, making it ideal for ATV use. The single-stage planetary gear system allows for fast line speed while the automatic load-holding brake provides maximum safety. It has free spooling for a fast line-out, a roller fairlead with nylon bushing and an aircraft-grade wire rope.
- 1.1 HP permanent magnet motor
- Free spool enables faster rigging and vehicle recovery
- Automatic load-holding brake keeps drum cool
- Includes 50' galvanized aircraft-grade wire rope
- 4-way steel roller fairlead reduces friction and improves rope life
- Operates with handlebar-mounted rocker switch
- Colour-coded wires for easy installation
- Includes mounting brackets and hardware
- Rated Single Line Pull: 2,500 Ib. (1,134kg.)
- Application: Utility/Shop/ATV
- Motor: 12V DC 1.1 HP Permanent Magnet
- Power In & Power Out: Yes
- Duty Cycle Rating: 5% (45 Sec at Max Rated Load
- 14 minutes, 15 seconds rest)
- Handlebar Rocker Switch: Wired, 12ft (3.7m) Long
- Gear Train: Differential Planetary
- Gear Ratio: 153:1
- Free Spool: Pull and Turn
- Brake: Auto. Load Holding Dynamic
- Drum Diameter: 1.24" X 2.83" (31.5mm x 72 mm)
- Hook: 1/4" Clevis, with Spring-Loaded Safety Latch
- Fairlead: Roller with Nylon Bushings
- Wire Rope Size /Type: 5/32" x 50' (4.0mmX15.2m)
- 7X19 Galvanized Steel
- Aircraft Wire Rope
- Battery: 12V DC Minimum 12Ah
- Battery Cables: 10 Gauge, 5.9' (1.8m) long
- Solenoid Cables: 10 Gauge, 1.3' (0.4m) long
- Mounting Bolt Pattern: 3.15’’ (80mm)
- Mounting Hardware: Winch: 2xG8, M8-1.25X35mm (0.05” X 1.38’’ ), Fairlead: 2x G8. M8-1.25 X 20mm (0.05’’ X 0.75’’)
- Solenoid Box: 2x G8. M5-0.875 X 20mm (0.03’’ X 0.75’’)
- Overload Protection: In-line Circuit Breaker
- Sound Rating: 85db
- Overall Dimensions (L X D X H): 11.1" × 4.61" × 4.17" (282mm × 117mm × 106mm)
- Weight: 17.86 Ib. (8.1kg)
- IP Rating: IP 65 - Winch and Controls (resistant to water jets)
- To prevent serious injury, read and understand the owner's manual before operating
- Do not exceed the rated load capacity
- This winch is intended for pulling only
- Do not use to transport people or animals
- Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.
- Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use
- Do not engage or disengage the clutch while loaded
- Keep bystanders out of the area while operating the winch
- Not for use by or around children
