Enthuze 10000 lb Winch, Synthetic Rope
This product may be universal or missing important fitment information for your vehicle. For vehicle specific items requiring fitment, please consult with an Enthuze representative before ordering as some items are non refundable.
Description

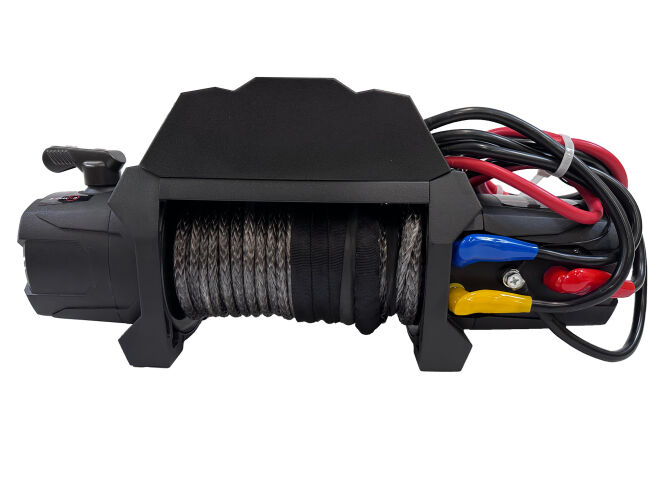

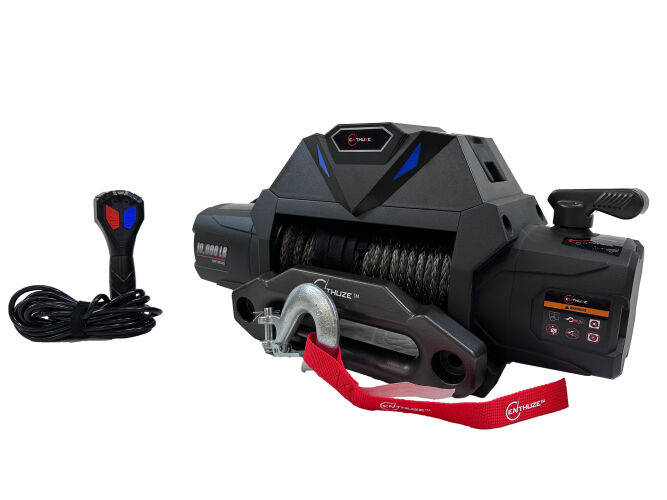

The Enthuze 10,000lb 12V-DC Electric Vehicle Winch features a series-wound motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out. The winch has a Hawse fairlead and a synthetic rope.
- 5.5 HP permanent magnet motor
- Three-stage planetary gear system provides fast line speed
- Automatic load-holding brake keeps drum cool
- 2.75" drum for superior cable-surface contact
- Equipped with premium stainless-steel hardware
- Includes 82' synthetic rope and hook
- IP68 waterproof design keeps elements out
- Includes 12' wired remote control
- Rated Single Line Pull: 10,000lb (4536kg)

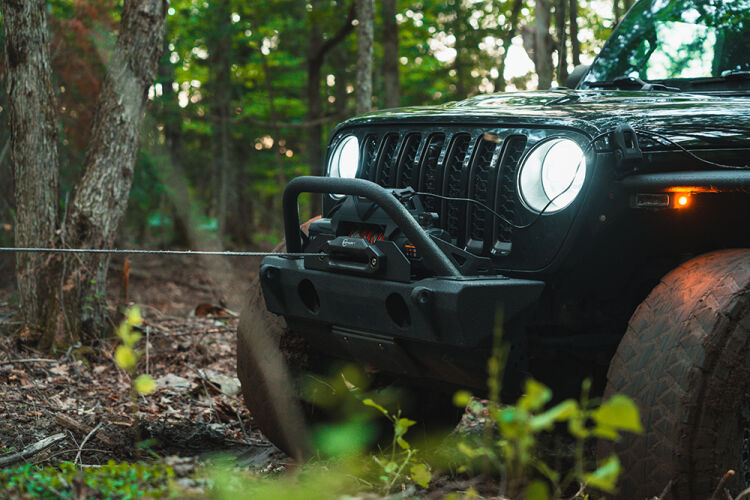

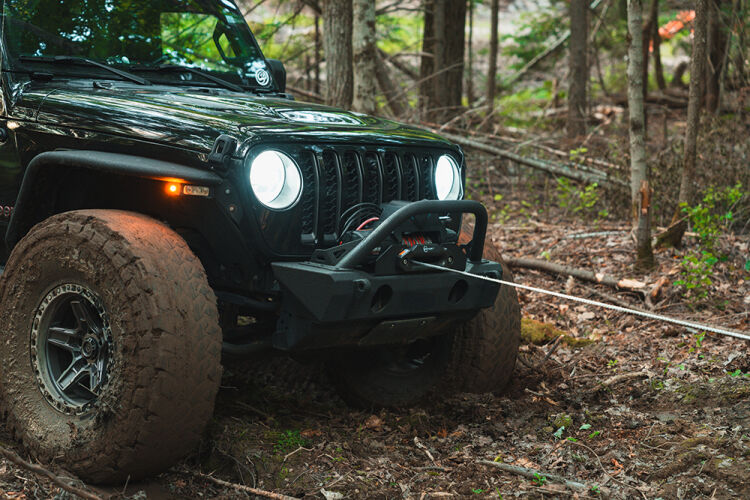

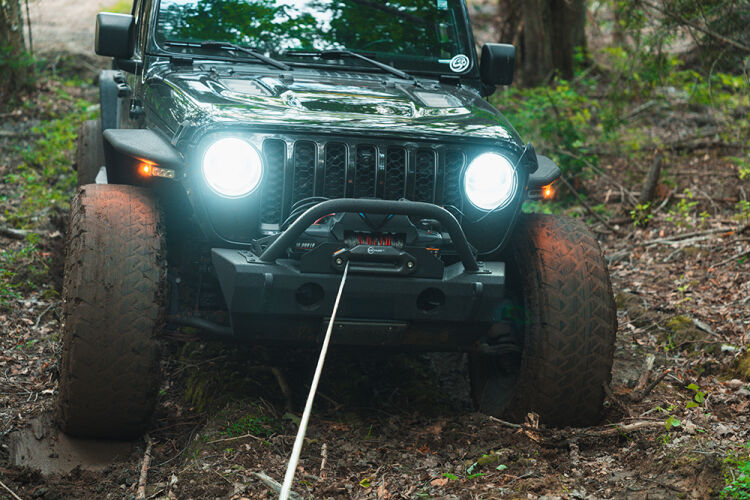

- Application: Vehicle Recovery / For Trucks and SUVs
- Motor: 12V DC 5.5 HP Series Wound
- Power In & Power Out: Yes
- Duty Cycle Rating: 5% (45 seconds at Max Rated Load
- 14 minutes, 15 seconds rest)
- Pendant Controller: Wired, 12’ (3.7m) Long
- Gear Train: 3-stage Planetary
- Gear Ratio: 232:1

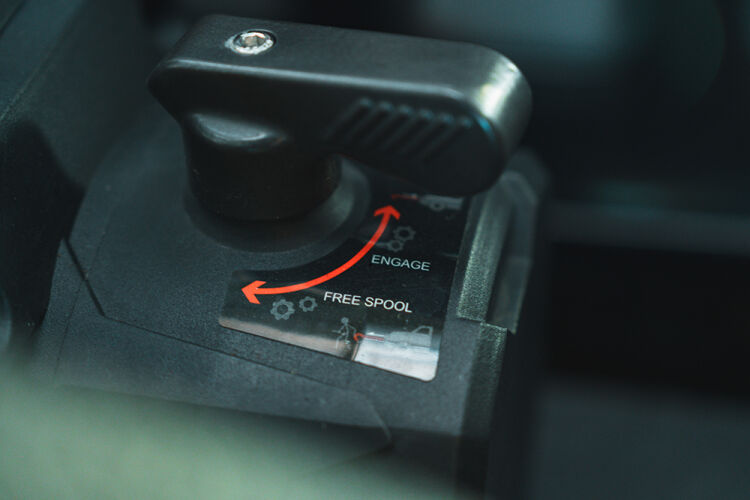

- Free Spool: Locking Ring Gear
- Brake: Auto Load Holding
- Drum (Dia. XL): 2.75" x 8.8" (70mm x 224mm)
- Clevis Hook: 3/8”, Replaceable with Spring-Loaded Safety Latch

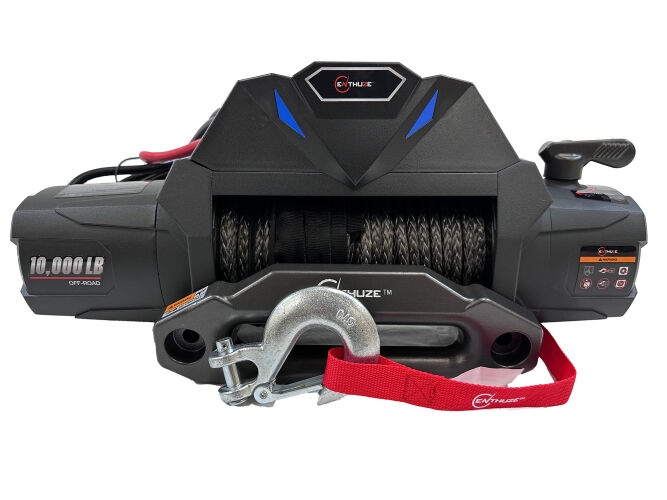

- Fairlead: Hawse Fairlead
- Rope Size/Type: 0.335" x 82’ (8.5mm x 25m)
- Synthetic Rope
- Battery: 12V DC Minimum 650 CCA
- Battery Cables: Min. 3.5 Gauge
- Mounting Bolt Pattern: 10’’x 4.5’’ (254mm x 114.3mm)
- Mounting Hardware: Winch: 4×G8, M10-1.50×30mm, : Fairlead: 2×G8, M12-1.75×25mm
- Overload Protection: Built-in with remote
- Sound Rating: 85db
- Overall Dimensions (LXDXH): 21.3" X 6.5" X 9.76’’(540mm X164mm X248mm)
- Weight: 60lb (27.37 kg)
- IP Rating: IP68 - Winch and Controls
- To prevent serious injury, read and understand the owner's manual before operating
- Do not exceed the rated load capacity
- This winch is intended for pulling only
- Do not use to transport people or animals
- Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.
- Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use
- Do not engage or disengage the clutch while loaded
- Keep bystanders out of the area while operating the winch
- Not for use by or around children
